Option for ordering a color of choice for the sensor and the base. Minimum order quantity is 100 pcs.

Description

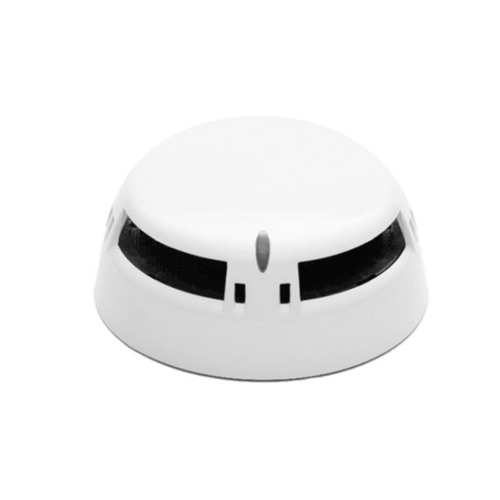

OneDetector – Intelligent combined fire alarm sensor

Key features:

  • Dual technology – Combination of optical and thermal sensors for maximum accuracy and security;
  • In accordance with three standards – EN54-5, EN54-7 и EN54-29 (the first certified detector of this class);
  • Protection against false alarms – Intelligent algorithms for filtering false triggers;
  • 360° LED indicator – Visual signaling (red – alarm, yellow – fault, green – normal);
  • Built-in short circuit isolator – Automatically isolates a short circuit while maintaining the functionality of the other detectors in the network;
  • Easy addressing – addressing via ONEPROGRAMMER with a touchscreen or Teledata panel;
  • Vandal-resistant protection – Locking pin and numbered base for increased security

Advantages

  • High reliability – Dual technology for rapid fire detection and immediate response;
  • Easy management – Quick addressing and installation;
  • Suitable for various environments – Effective in offices, warehouses, industrial sites, hotels, etc..

OneDetector – fire detection sensor, the innovative solution for modern fire safety!


Тип датчик / Sensor type r:

Комбиниран оптичен и термодиференциален.  Скорост на нарастване при 58°C / Dual Optical and Rate of Rise at 58°C

Съответствие / Compliance:

EN54-5, EN54-7, EN54-17

Максимална площ на покритие / Maximum coverage area:

132 m2

Максимална височина на инсталиране / Maximum installation height:

  12 m

Протокол / Protocol :

ONEPROTOCOL

Устройства за един контур / Loop :

До 240 устройства с дължина на трасето до 5 км  (подлежи на изчисления на натоварване и използване на подходящи кабели)  /Up to 240 devices along 5 Km of cable ( subject to load calculations and use of appropriate cables)

Диапазон на захранващо напрежение  / Supply voltage range

18 ~ 27V

Консумация в режим на готовност / Stand by consumption

190μA

Ток при аларма / Alarm curren:

6 mA (LED on)

Максимална консумация на дистанционния изход / Remote output max current:

15 mA

Височина със стандартна основа / Height with standard base

48 mm

Диаметър / Diameter:

92 mm​

Тегло със стандартна основа / Weight with standard base:

120 g

Работна температура / Operating Temperature [°C]

-30°C ~ +70°C

Влажност / Humidity:

95% RH (без кондензация)  / 95% RH (without condensation)

Стандартна основа / Standard base:

ONEBASE

Основа със сирена (EN54-3) / Base with siren:

ONEBASES

Основа със сирена и светлинна индикация (EN54-3, EN54-23 / 1Base with siren and flash (EN54-3, EN54-23):

ONEBASELPG



In accordance with standards EN 54-7:2018; EN 54-17:2005, EN 54-17:2005/AC:2007 Свали
