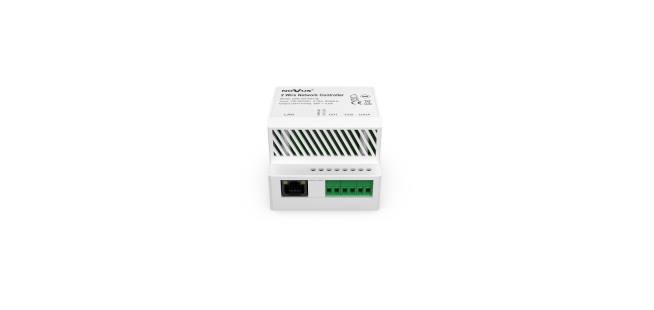

NVE-2W-PS136 2-Wire/IP Network Controller for video intercoms; DIN rail mounting

NVE-2W-PS136 2-Wire/IP Network Controller for video intercoms; DIN rail mounting

https://www.raytron.eu/web/image/product.template/12495/image_1920?unique=ca4af10

141.84 лв 141.84 BGN 141.84 лв

141.84 лв

    This combination does not exist.
    Contact Us



    Share


    IP video controller for video intercoms. Compatible with NVE-2W-EPV101KP and NVE-MV107WIFI-B monitor. Two-wire wiring and DIN rail mounting option. Compatible with  NVE-2W-EPV101KP video intercom and monitor NVE-MV107WIFI-B. Two-wire wiring and the possibility of mounting on a DIN rail

    Технически данни / Technical data


    Захранване: / Power supply:

    100V~240V / 50Hz

    Изходяща мощност/ Output power

    (Ch1+Ch2) 36V~0.8A, 30W max

    Консумация / Consumption:

    5W

    Интерфейс / Interface:

    1*Ethernet, 2*Bus; Data port

    Окабеляване / Wiring :

    двупроводно / two-wire

    Съвместимост / Compatibility :

    Tuya Smart life

    Размери: / Dimensions: 72 x 90x59 mm
    Тегло: / Weight: 0,200 кг/ kg
    Работна температура: / Operating temperature: -10~+50C°
